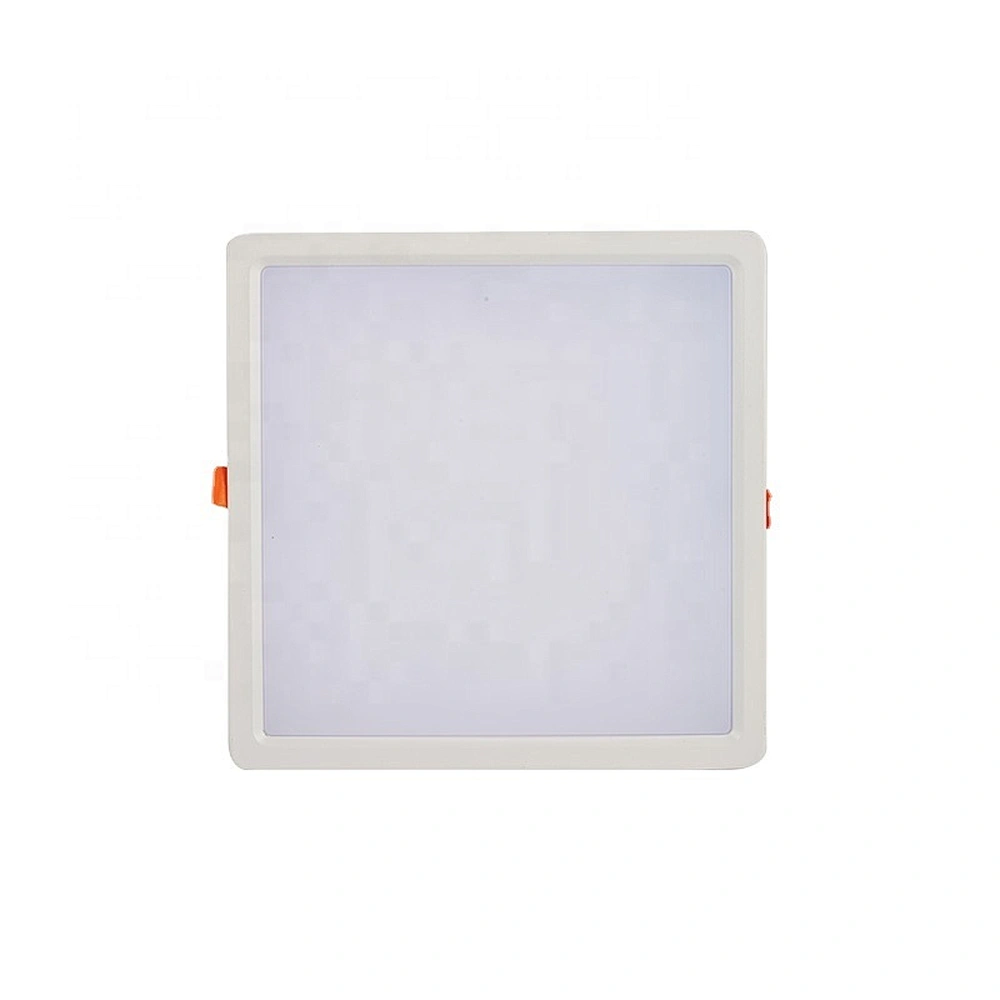

High quality supper 2 year warranty back lit 16w 24w 36w slim led recessed panel light
price
$2.40 / piece
TC-P05-HDS32
1 piece
Shengzhen/Zhongshan
Quantity
- Color Temperature(CCT):3000K, 4000K,6000K (±200K), 3000k/4000k/6000k
- Lamp Luminous Efficiency(lm/w):90-100, 100
- Color Rendering Index(Ra):80
- Light Source:LED
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design, Project Installation
- Application:Hotel
- Design Style:Modern
- Lifespan (hours):35000
- Working Time (hours):30000
- Input Voltage(V):AC85-265V
- Lamp Luminous Flux(lm):1440-3200 lm
- CRI (Ra>):80
- Lamp Body Material:Aluminum
- IP Rating:Ip44
- Model Number:TC-P05-HDS32
- Place of Origin:Guangdong, China
- Brand Name:TECO
- Install Style:Embeded
- Switch Type:Touch On/Off Switch
- Warranty(Year):3-Year
- Working Temperature(℃):-40 - 60
- LED Light Source:SMD2835
- Size:225x225mm
- Cut-out:210x210mm
- PF:>0.6
- Power selectable:6/12/16/18/24/32W

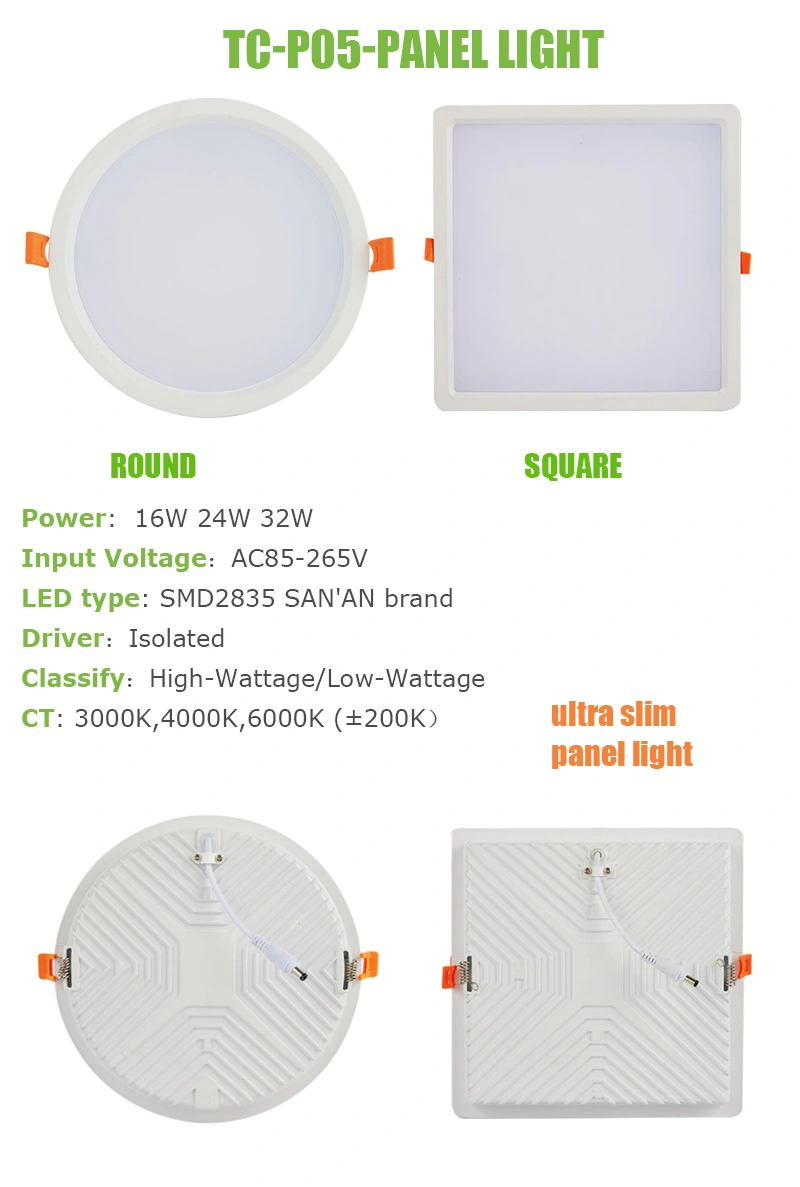

Products Description
TECO No. | Shape | Power | Size | Lumen | PF |
TC-P05-HDR16 | Round | 16W | Ф120mm | 1440-1600lm | ＞0.6 |
TC-P05-HDR24 | Round | 24W | Ф170mm | 2160-2400lm | ＞0.6 |
TC-P05-HDR32 | Round | 32W | Ф225mm | 2880-3200lm | ＞0.6 |
TC-P05-HDS16 | Square | 16W | 120x120mm | 1440-1600lm | ＞0.6 |
TC-P05-HDS24 | Square | 24W | 170x170mm | 2160-2400lm | ＞0.6 |
TC-P05-HDS32 | Square | 32W | 225x225mm | 2880-3200lm | ＞0.6 |

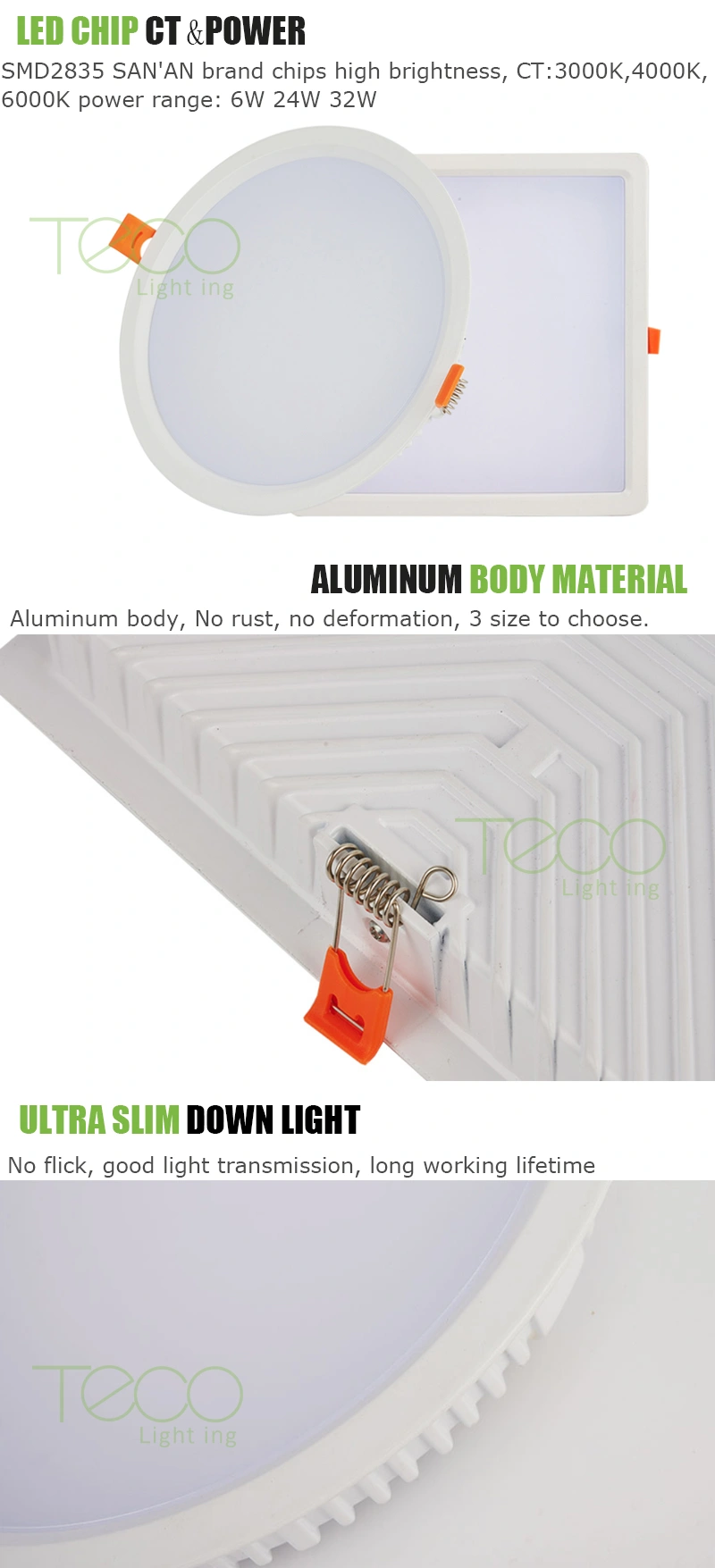

Details Images
