CE Rohs 6w 12w 18w 24w ip44 round square home office Indoor led surface mounted panel light
price
$1.50 / piece
TC-P03
1 piece
Shengzhen/Zhongshan
Quantity
- Color Temperature(CCT):3000K,4000K,6000K(±200K), 3000K/4000K/6000K
- Lamp Luminous Efficiency(lm/w):60-85, 85
- Color Rendering Index(Ra):80
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Application:Home Office, Commercial Lighting
- Design Style:Modern
- Lifespan (hours):50000
- Working Time (hours):50000
- Input Voltage(V):AC85-265V
- Lamp Luminous Flux(lm):360-2040lm
- CRI (Ra>):80
- Working Temperature(℃):-40 - 50
- Working Lifetime(Hour):50000
- Lamp Body Material:Aluminum
- IP Rating:Ip33
- Place of Origin:Guangdong, China
- Brand Name:TECO
- Model Number:TC-P03
- Light Source:LED
- Warranty(Year):3-Year
- Size:120mm diameter
- PF:>0.6
- Shape:Round Shape
- Material:Aluminum+Acrylic
- Power selectable:6/12/18/24W

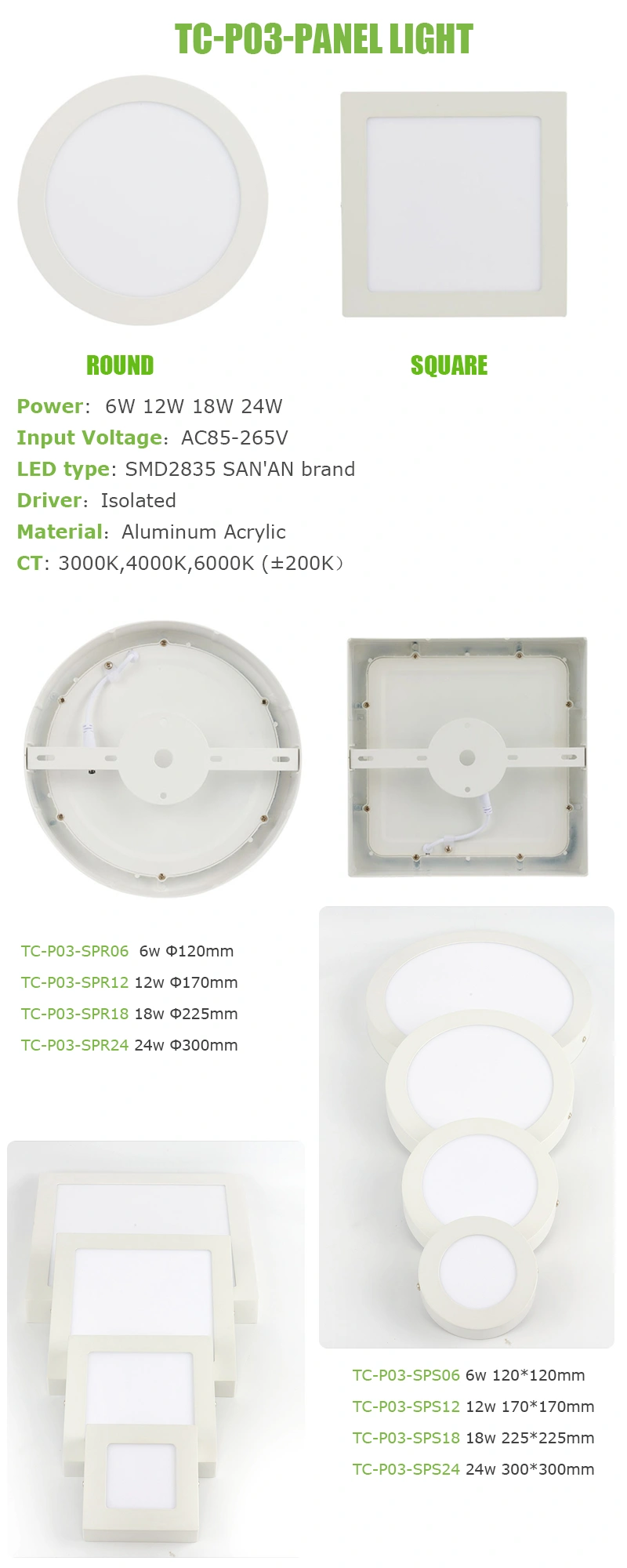

Products Description
TECO No. | Shape | Power | Size | Lumen | PF |
TC-P03-SPR06 | Round | 6W | Ф120mm | 360-390lm | ＞0.6 |
TC-P03-SPR12 | Round | 12W | Ф170mm | 840-900lm | ＞0.6 |
TC-P03-SPR18 | Round | 18W | Ф225mm | 1440-1530lm | ＞0.6 |
TC-P03-SPR24 | Round | 24W | Ф300mm | 1920-2040lm | ＞0.6 |
TC-P03-SPS06 | Square | 6W | 120*120mm | 360-390lm | ＞0.6 |
TC-P03-SPS12 | Square | 12W | 170*170mm | 840-900lm | ＞0.6 |
TC-P03-SPS18 | Square | 18W | 225*225mm | 1440-1530lm | ＞0.6 |
TC-P03-SPS24 | Square | 24W | 300*300mm | 1920-2040lm | ＞0.6 |

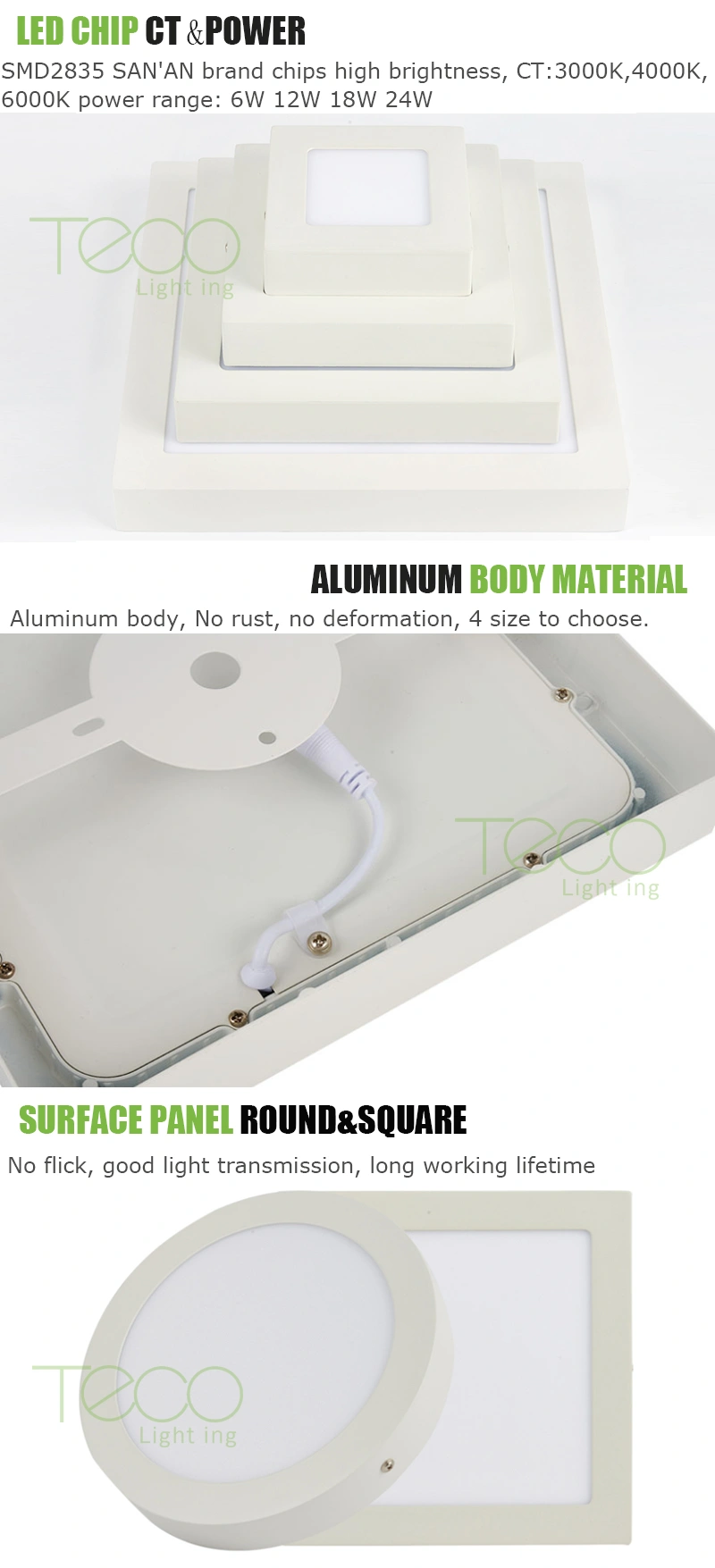

Details Images
